Philippine Client Really Appreciate Our Marking Machine and Pre-heater
On May 20th, a Philippine client Mr.H sent an inquiry on our web page asking about our thermoplastic road marking machine. After the brief introduction of the machine by our salesman, he knew more about the road marking knowledge and knew that Pre-heater is an important machine working with the thermoplastic machine. So he decided to add one Pre-heater on the order. The shipment of the goods was launched at the end of May.

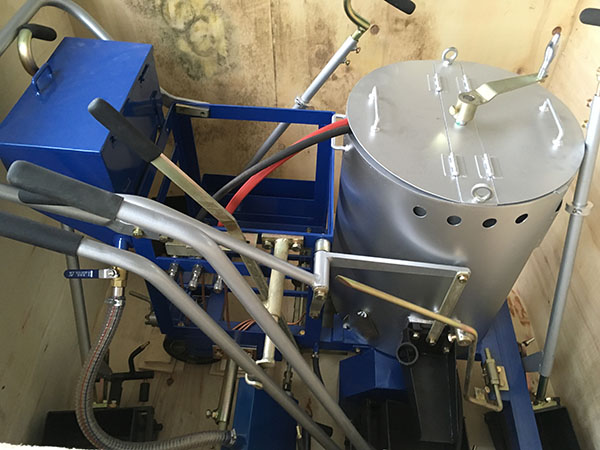

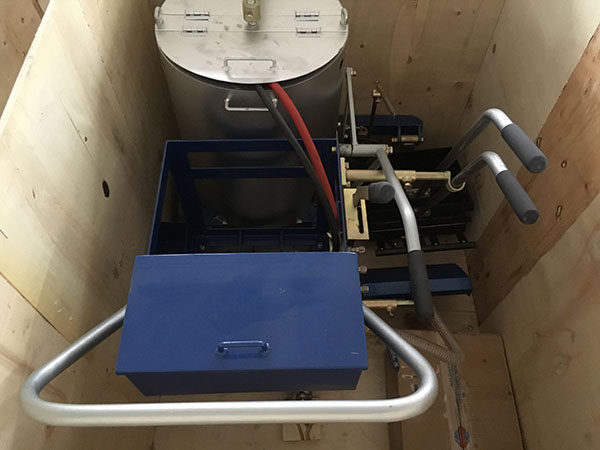

RS-1B is one of our hand-push thermoplastic road mark machine, which adopts a high-precision die shoe made of iron to ensure the marking line edge striped neatly, with uniform thickness and aesthetic line appearance. The blade apply to different situations of the road ad the glass beads is fitted with automatic dispensing device to control the speed. The machine has good marking effect for high standard construction, with the advantage of high construction speed, flexible operation, and easy maintenance etc.

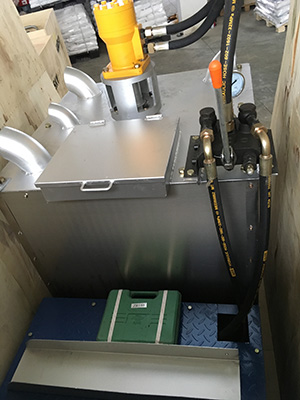

The Single tank hydraulic thermoplastic paint pre-heater is designed for flexible use for road marking projects. Compared to double tank pre-heater, less capacity of hydraulic oil tank, less power diesel engine and smaller hydraulic system is suitable for small road marking projects.
RS-1B Specifications:
| Thermoplastic Tank Capacity | 55L/100KG |
| Glass Beads Bin Capacity | 10 KG |
| Liquefied Gas Tank | |
| Dimensions | 1200*800*1020 mm |
| Weight | 120 kg |
| Marking Width | 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm |
| Glass Beads Dispenser | |
| Marking Thickness | 1mm to 3mm |
| Marking Speed | 500-1200 m/h |
| Service Life | 3 to 5 years according workload |
| Application Area | highway,urban street, parking lots |
| Optional Equipment | RS-11, double dispenser |
RS-4B Specifications:
| Place of Origin | CHINA |
| Brand Name | ROADSKY |
| Model Number | RS-4B |
| Minimum Order Quantity | 1 set |
| Packaging | Export and sea-worth special packing |
| Price Condition | FOB China Port |
| Payment Terms | T/T,L/C |
| Delivery Time | 10 days after receiving the advance payment |
| Supply Ability | 100 sets per month |
| Model | RS-4B-350 |
| Tank Quantity | Single Tank |
| Size (L×W×H) | 1850*900*1750 mm |
| Net Weight | 390 kg |
| Material Temperature | 180℃-220℃ |
| Diesel Engine | 15P Electric-started water cooling engine |
| Hydraulic Oil Reservoir | 40L |
| Hydraulic Motor | BM Model |
| Bottom | Boiler plate, Bottom thickness: 6mm |
| Heating System | Liquefied petroleum gas (natural gas), adopt energy-efficient burner (Direct injection Stove) |
| Safety Device | Specially designed overload overflow device, avoid the wrong operation |
| Rotational System | 20-100r/min. |
| Hydraulic System Pressure | 5 Mpa |
| Working Pressure | 4-5 Mpa |
