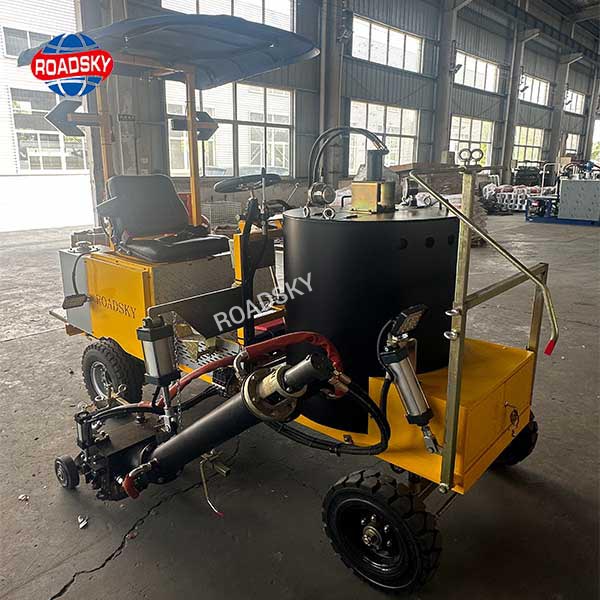

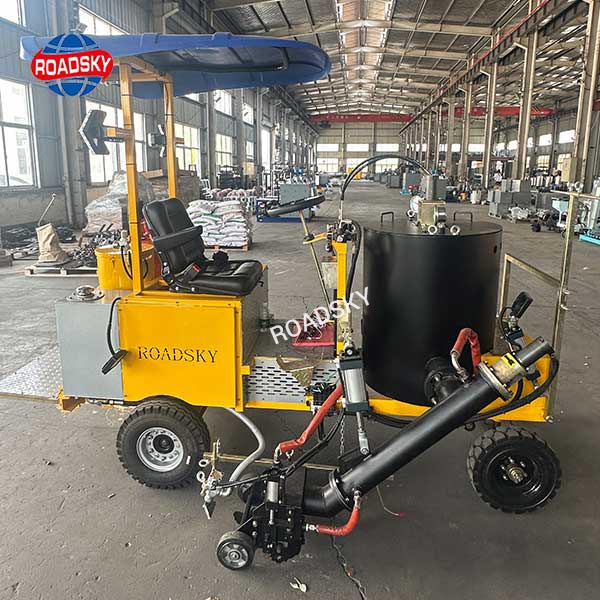

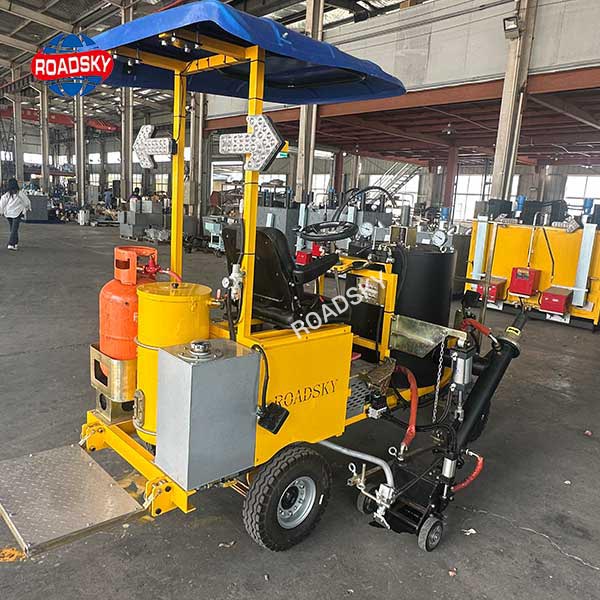

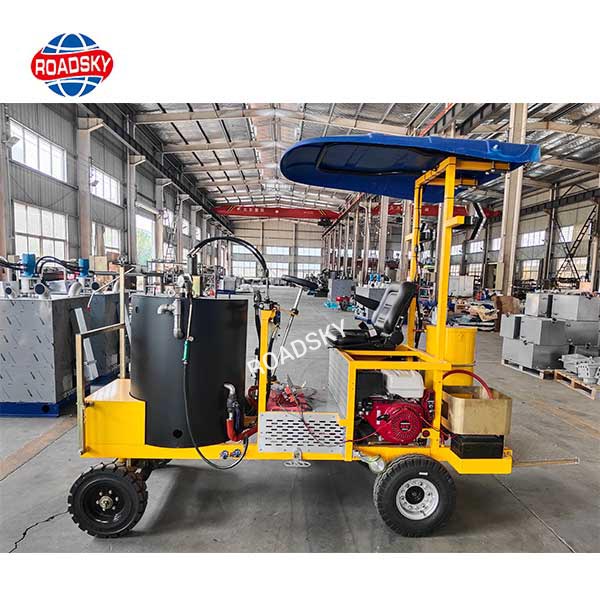

RS-15H Extrusion Thermoplastic Road Marking Machine

الميزات:

1. Adjustable width for different line sizes

2. High Efficiency

3. High-Capacity Thermoplastic Tank

4. Driving type

5. Heating System

6. User-Friendly Controls

الاستفسار

معلومات أساسية

RS-15H extrusion thermoplastic road marking machine is a type of equipment used to apply thermoplastic road markings onto roads using an extrusion method. It’s used for high-traffic highways, urban roads, and intersections because it ensures thick, uniform, and durable lines.

المواصفات:

الحجم:	2550x1500x2150mm
Maching weight:	765 Kg
سعة خزان الطلاء:	300 Kg
Glass bead tank capacity:	75 Kg
Bead scattering system:	Air-jet glass beads system
Marking method:	Spray type
Marking thickness:	1.5-2.5 mm
عرض الوسم:	150mm or 200mm
سرعة وضع العلامات:	0-3Km/h
سرعة القيادة:	10 Km/h
Engine power:	Honda GX390，13HP
نظام القيادة:	Hydraulic stepless transmission
Heating method:	Heat transfer oil heating system
