BASIC INFO
Parts
RS-5 series cold paint road marking machine is widely used in parking lots, urban road and highway marking project. It is a kind of airless high pressure spraying marking machine, which generates pressure from plunger pump to spray paint through nozzle. Special designed spray guns control system makes the line ends tidy and good-looking.
Specification:
| Model | RS-5A | RS-5B |
|---|---|---|
| Dimension | 1800*1200*1150mm | 1800*1200*1200mm |
| Weight | 170kg | 180kg |
| Engine | 5.5hp gasoline engine | 5.5hp gasoline engine |
| Pump and Control Menthod | auto-shuttle plunger pump | auto-shuttle plunger pump |
| Working Pressure | 10-15Mpa | 10-15Mpa |
| Spraying Width | 50-500mm | 50-500mm |
| Spraying Thickness | 0.2-0.6mm | 0.2-0.6mm |
| Marking Speed | 13km/h | 13km/h |
| Marking Method | high pressure airless spraying | high pressure airless spraying |
| Spraying Flow Rate | 9L/min | 10 L/min |
| Spraying Gun | 2pcs | 2pcs |
Working On-Site:
Structure Details:
Our Factory and Inventory:
-
- Gasoline engine
-
- Hydraulic pump
Gasoline engine: Honda 5.5HP air-cooled gasoline engine.
Hydraulic pump: Generate stable pressure to spray the paint.
-

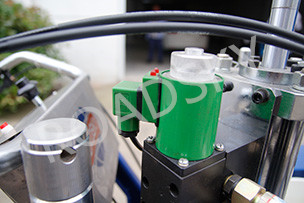

- Electromagnetic valve
-

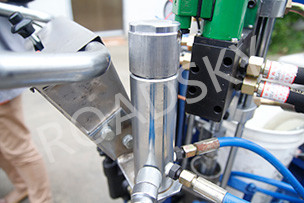

- Paint filter
Electromagnetic-valve: control working of hydraulic pump.
Paint filter: Filter impurities in the paint before spraying.
-
- Paint pail position
Spray guns: Fixed hand spray guns to spray paint in fan-shaped.
Paint pail position: Place to position paint pail.
