Truck mounted cold paint road marking machine is designed for large scale road marking project like highway line marking. It’s multi-functional equipment which can be used for pre-marking or marking wider line in airport.
It is is a pavement construction machine that is widely used in roads, high-grade roads, parking lots, squares, and runways to draw different restrictions, guidelines, and warnings on the flat ground.
Mount the main parts on the truck(trcuk mounted) before usage, and remove it when no working, so it will not affect the use of the vehicle.
Marking width can be flexibly adjusted according to individual needs, all of the gun can be controlled separately.
Specifications:
| Model | RS-5C |
| Dimension | 1400*950*1250 mm |
| Weight | 450 kg |
| Paint Tank Capacity | 200 kg |
| Marking Method | high pressure airless spraying |
| Working Pressure | 10-15 Mpa |
| Air Compressor Air Output | 0.366 m³/min |
| Delivery Rate | 18-36 L/min |
| Engine Power | 13 hp |
| Marking Line Width | 100-600 mm |
| Marking Thickness | 0.2-0.8 mm |
Product Details:
Factory Environment and Inventory:
Contact Us for a Free Quote
Fill The Form Below, and our sales representatives will be in touch with you shortly.
-

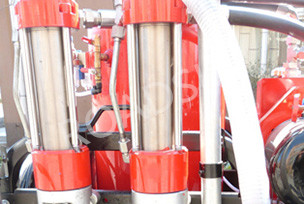

- Double Hydraulic Pump
-

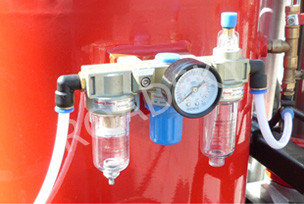

- Oil-Water Separator
